Dynapac SD2500C (ч. 1)dynapac-sd2500c-1
Поиск деталей
Например: Wear part and Inspection kits TIER 3
Service, repair and wear part kits, Stage IIIa / Tier3Auger kitsHopper kitsDriveService kitsService, repair and wear part kits, Stage IIIb / Tier4iService, repair and wear part kits, Stage IV / Tier4fMechanical, Stage IIIa, IIIb / Tier3, 4iMechanical, Stage IV / Tier4fOperator platformEngine Stage IIIa / Tier3Engine Stage IIIb / Tier4iEngine Stage IV / Tier4fDriveConveyorAuger

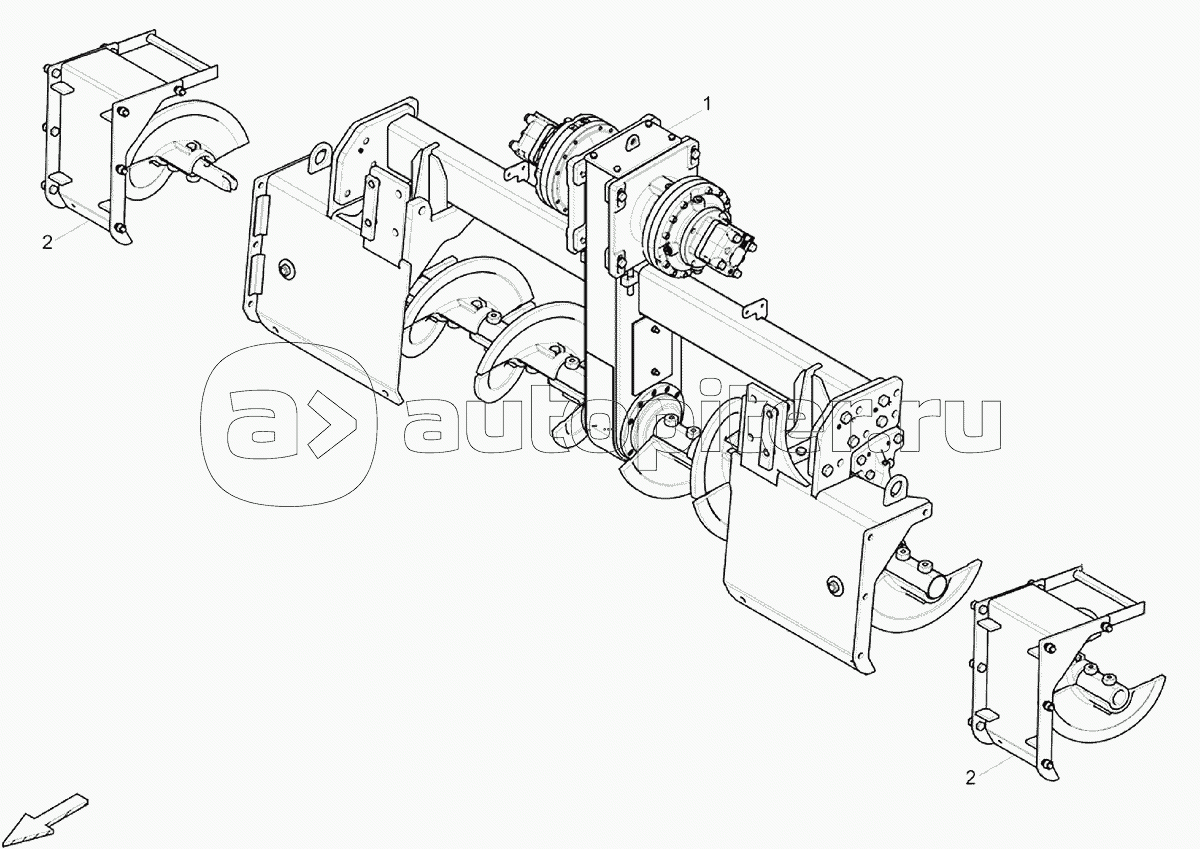

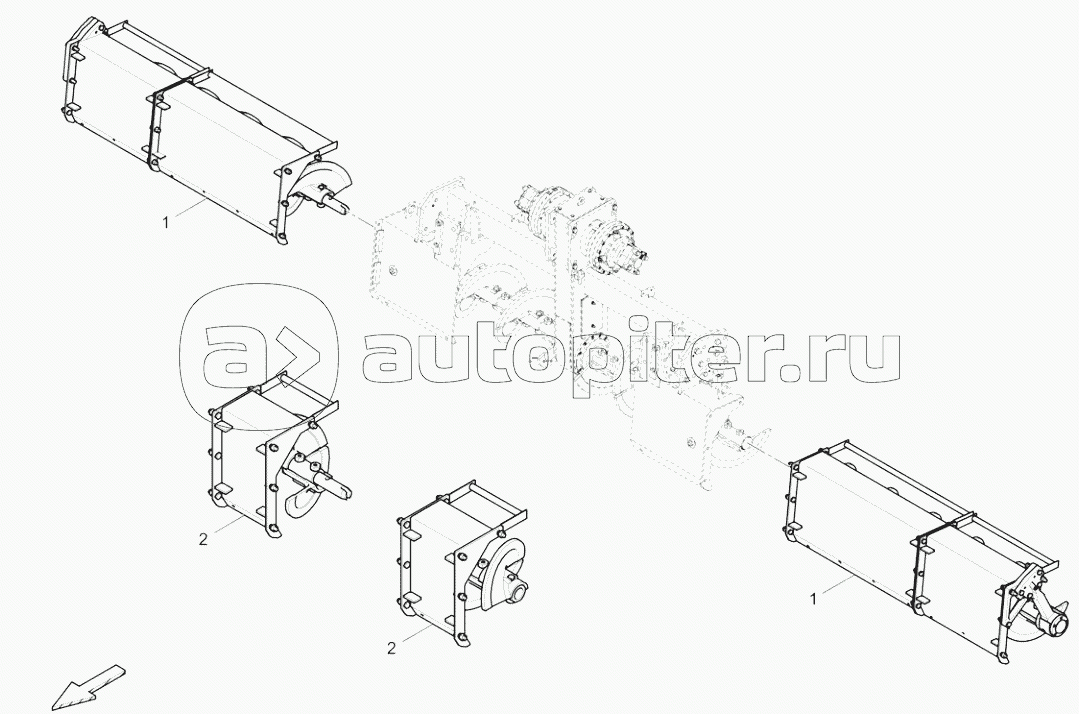

4812233020 Auger, basic width 380
4812232097 Mounting parts
4812045075 Auger gear
4812232996 Auger box
4812026736 Outer support
4812016497 Auger support
4812233029 Auger d.380mm, 3,14m
4812047161 Extension part f. auger d.380mm
4812031788 Auger d.380mm, 3,14m
4720000140 Auger extension, l.h. L:320mm

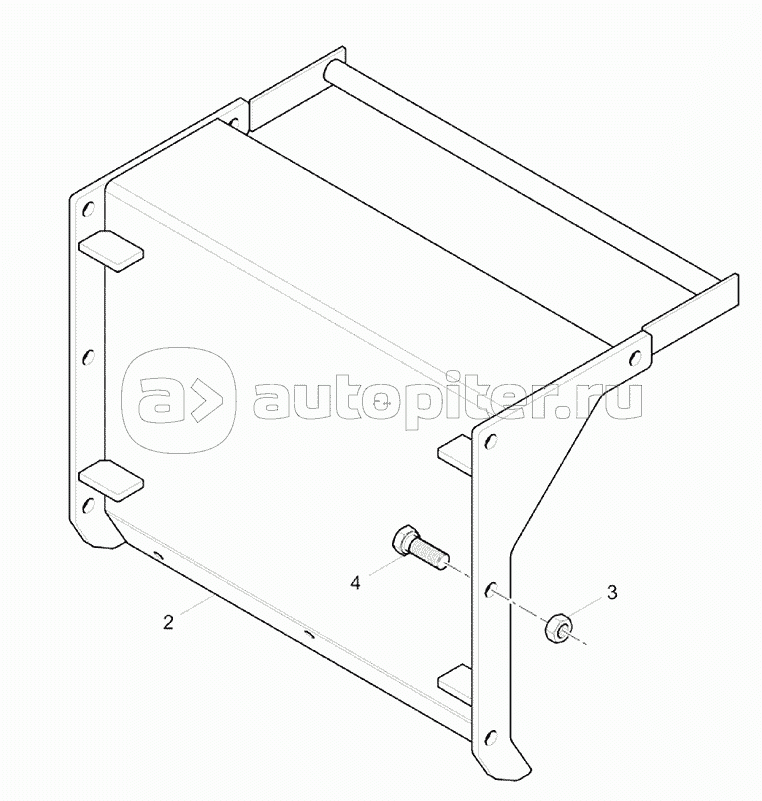

4812028794 Material tunnel, cpl. L:320mm
4720000816 Auger extension, r.h. L:320mm
4812233033 Auger d.380mm, 3.78m
4812047189 Extension part f. auger d.380mm
4812032182 Auger d.380mm, 3,78m
4812028792 Material tunnel, cpl. L:640mm
4720000137 Auger shaft extension assy. 640 mm r.h./rts.
4720000818 Auger shaft extension assy. 640 mm l.h./lks.
4812031805 End support, cpl.
D439082200 Screw conveyor, end bearing
4812030868 additional Extension parts
4720000816 Auger shaft extension assy. 320 mm r.h./rts.
4720000140 Auger shaft extension assy. 320 mm l.h./lks.
4812233037 Auger d.380mm, 4.42m
4812047192 Extension part f. auger d.380mm
4812032184 Auger d.380mm, 4,42m
4812233041 Auger d.380mm, 5.06m
4812047195 Extension part f. auger d.380mm
4812032187 Auger d.380mm, 5,06m
4812030927 Material tunnel, cpl. L:960mm
D439082200 End support
4720000138 Auger extension, l.h. L:960mm
4720000139 Auger extension, r.h. L:960mm
4812030869 additional Extension parts
4720000137 Auger extension, r.h. L:640mm
4720000818 Auger extension, l.h. L:640mm
4812233045 Auger d.380mm, 5.70m
4812047198 Extension part f. auger d.380mm
4812032190 Auger d.380mm, 5,70m
4812233049 Auger d.380mm, 6.34m
4812047201 Extension part f. auger d.380mm
4812032193 Auger d.380mm, 6,34m
4720000138 Auger shaft extension assy. 960 mm l.h./lks.
4720000139 Auger shaft extension assy. 960 mm r.h./rts.
4812028782 Strut material duct, l.h. L:960mm
4812028787 Strut material duct, r.h. L:960mm

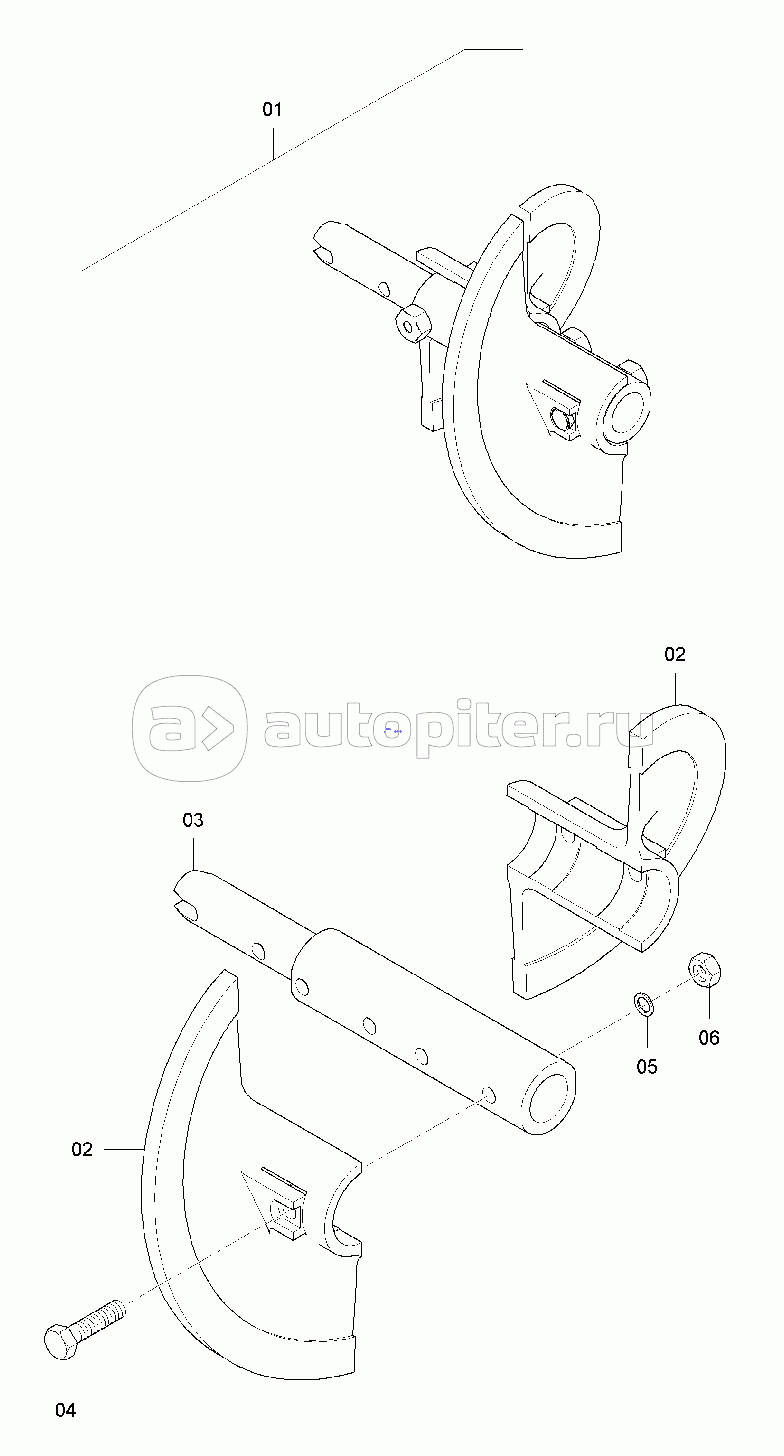

4812032195 Auger wing d.380mm, l.h.
4738000980 Auger wing, l.h.
4812032196 Auger wing d.380mm, r.h.
4738000981 Auger wing, r.h.
4812031804 Outer support
D438081200 Auger bearing
4812028789 Strut material duct L:960mm
4812029259 Brace
4812028882 Cross struts
4812201937 Cross struts
4812030870 additional Extension parts
4812233054 Auger d.380mm, 6.98m
4812047206 Extension part f. auger d.380mm
4812032197 Auger d.380mm, 6,98m
4812032496 Additional Extension parts
4812233059 Auger O380mm, 7.62m
4812047210 Extension part f. auger O380mm
4812031789 Auger O380mm, 7,62m
4812233064 Auger O380mm, 8.26m
4812047214 Extension part f. auger O380mm
4812032210 Auger O380mm, 8,26m
D438081200 End support
